What is thermally diffused and how and why does it work so well?

Thermal Diffusion – is a process where atoms or molecules migrate within or between solid materials due to a concentration gradient, temperature gradient, or both, without the material undergoing a phase change (e.g., melting). It involves the movement of atoms through the crystal lattice of a solid, typically driven by thermal energy that increases atomic mobility.

This process is governed by Fick’s laws of diffusion, where the rate of diffusion depends on the concentration gradient, temperature, and the material’s properties.

How is Thermally Diffused Zinc made, and what is it?

Key Mechanisms of Solid-State Thermal Diffusion

  • Vacancy Diffusion: Atoms move by jumping into vacant lattice sites. Higher temperatures increase vacancy concentration, enhancing diffusion.
  • Interstitial Diffusion: Smaller atoms move through interstitial spaces in the lattice. This is common for smaller atoms like carbon or nickel in alloys.
  • Grain Boundary Diffusion: Atoms move along grain boundaries, which are less densely packed and allow faster diffusion than the bulk lattice.
  • Surface Diffusion: Atoms migrate along the surface of the material, often relevant in thin coatings or interfaces.

KINETICS

The diffusion rate is described by the Arrhenius equation: where:

D is the diffusion coefficient,
D0 is a material-specific constant,
Q is the activation energy for diffusion,
R is the gas constant,
T is the absolute temperature.
Higher temperatures increase , accelerating diffusion.

Fick’s Second Law and the Kirkendall
Effect are the Two Major Factors in
Forming Thermal Diffused Zinc Coatings

By leveraging Fick’s and Kirkendall’s principles, we create a predictable, graded coating structure that eliminates sharp boundaries and ensures maximum resistance to mechanical stress and corrosion.

Uniform Diffusion

Fick’s Second Law describes how the concentration of diffusing species (here, zinc) changes over time and position in a non-steady-state system, where the concentration profile evolves as zinc spreads into the iron lattice. This law ensures the coating forms a predictable, graded structure—from a zinc-rich surface to an iron-rich base—rather than a sharp, abrupt boundary.

Mathematical Foundation:

The one-dimensional form of Fick’s Second Law for constant diffusivity is:

• C(x,t) Zinc concentration at depth   (from the surface) and time t.


• D: Diffusion coefficient of zinc in iron, thermally activated
 where , Q ≈ 100-120 kJ/mol for Zn in Fe (activation energy for vacancy-assisted diffusion)6, R is the gas constant (8.314 J/mol·K), and   is absolute temperature.

• At zinc diffusing temperatures (e.g.,
 allowing measurable diffusion over hours.

ziPLY96+ optimizes well integrity and production efficiency by superior corrosion mitigation.

FORMATION STAGES

Step-by-Step Role in Forming the Coating:

Initial Setup: At t = o, zinc concentration is high at the surface (c(0,0) =cs , saturated from zinc powder contact) and zero deep in the substrate . This creates a steep gradie.

Time Evolution: As heat is applied, zinc atoms jump via vacancies or along grain boundaries. The second derivative (curvature of the profile) drives flux changes. Positive curvature (concave up) near the surface causes zinc to spread inward, flattening the profile over time.


– Solution for semi-infinite diffusion (common approximation for thin coatings): where /erf is the error function.

– How to Arrive at This: Integrate Fick’s First Law , with the continuity equation . For constant D separation of variables yields the error function solution, verified experimentally.

Coating Formation: After 2–6 hours, the profile stabilizes, forming a 20–120 μm diffusion zone. Zinc concentration drops from ~90 wt% at the surface (forming zeta phase, FeZn₁₃) to <10 wt% at the base (gamma phase, Fe₃Zn₁₀). This gradient creates intermetallic layers, providing a metallurgical bond and sacrificial corrosion protection. Which has a gradient circuit potential from the zeta to the gamma phase. Which allows the coating to be buried, come in contact with dissimilar metals and not be affected by circuit indifferences caused by contact or moisture in the environment.

– Predictive Value: Engineers solve for case depth xc, where
 . For t = 4 hours at 350°C, , matching typical sherardized coating.

(Without Fick’s Second Law, diffusion would be modeled statically (ignoring profile changes), leading to uneven coatings or over-/under-diffusion.)

COATING MECHANISMS

The Kirkendall Effect occurs during interdiffusion (zinc into iron and iron into zinc), where unequal diffusion rates () cause a net vacancy flux, shifting the diffusion interface and potentially forming voids. In thermal diffused zinc, this asymmetry refines the coating’s layered structure but requires control to avoid defects.

Mathematical Foundation:

The effect arises from differing diffusivities in the interdiffusion flux. The Kirkendall velocity (interface shift rate) is:


•  (faster, due to zinc’s smaller size and lower activation energy in Fe lattice).


• (slower, substitutional diffusion).

From Fick’s law, this gradient drives the imbalance.

Excess vacancies () migrate to the faster-diffusing side (zinc-rich), collapsing into voids or dislocations.

FORMATION STAGES

Step-by-Step Role in Forming the Coating:

• Interdiffusion Onset: Zinc diffuses inward faster than iron outward, creating more vacancies on the substrate side (iron lattice loses atoms quicker).

• Interface Shift: The original Zn-Fe interface moves toward the iron (slower) side by ~5–10% of coating thickness, as predicted by  VK Markers (e.g., oxide lines) would displace, confirming vacancy mediation.

– How to Arrive at This: From Fick’s Second Law, solve for each species separately ( , similarly for Fe). The net flux imbalance yields VK, experimentally observed in diffusion couples annealed at 350°C.

• Structural Impact:

   – Layering: The shift promotes distinct intermetallic phases (e.g., delta phase FeZn₇ forms where vacancy flux is high), enhancing coating hardness (200–400 HV) and adhesion.

– Defect Control: Minor voids (~1–5 μm) on the zinc side can form but are mitigated by fillers (e.g., sand in sherardizing), ensuring uniformity. Excessive voids would embrittle the coating, but controlled conditions (short times) minimize this.

• Coating Enhancement: The effect ensures a compact, gradient structure, improving corrosion resistance (zinc sacrificially protects iron).

PRACTICAL SYNERGY

  • Synergy: Fick’s Second Law provides the temporal blueprint for zinc penetration (predicting profile and depth), while the Kirkendall Effect adds spatial nuance (asymmetric layering and vacancy-driven refinement). Together, they transform a simple heat treatment into an engineered Zn-Fe alloy coating: the law ensures depth control, and the effect creates the multiphase durability.
  • Practical Outcome: In sherardizing, a 50 μm coating forms in 4 hours at 350°C, with zinc concentration evolving per the error function and interface shifting ~2–5 μm due to Kirkendall velocity. This yields a sacrificial barrier lasting 500–1000 hours in salt spray tests.
  • Challenges and Control: High T amplifies both (faster D, larger V), risking defects—solved by process optimization.

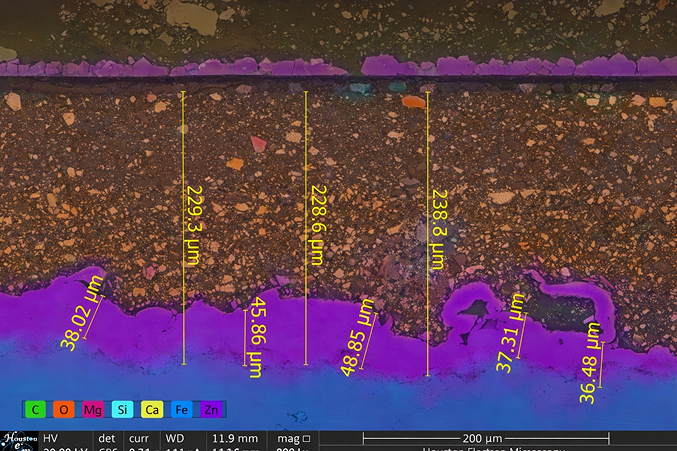

 (Figure. 1. We see in the SEM, where (Fe) and (Zn) have diffused together)

Key Advantages of Thermal Diffusion Technology

No structural interference

Maintains the steel’s original properties and dimensions.

Field-ready

Compatible with standard handling and operations.

Durability

Extends the lifespan of production tubing under extreme conditions.

Why Solid-State Thermal Diffused Zinc Works

Purpose: Corrosion Protection:

o   Sacrificial Protection: Zinc is more electronegative than iron (standard electrode potentials: Zn = -0.76 V, Fe = -0.44 V). In corrosive environments (e.g., moisture, salt), zinc corrodes preferentially, protecting the steel substrate via gradient galvanic action.

o   Barrier Protection: The zinc-iron alloy layer acts as a physical barrier, preventing corrosive agents (e.g., chlorides, water, oxygen) from reaching the substrate.

o   Durability: The metallurgical bond ensures the coating resists peeling or flaking, unlike loosely adhered coatings.

Why Diffusion is Effective:

o   Uniform Coating: Solid-state diffusion allows zinc to penetrate complex geometries (e.g., threads, recesses, voids), unlike line-of-sight methods like electroplating, or electroless applications.

o   Controlled Alloying: The formation of Fe-Zn intermetallic creates a robust, hard coating that combines zinc’s corrosion resistance with iron’s strength.

o   No Internal Hydrogen Embrittlement: Unlike electroplating, thermal diffusion avoids introducing hydrogen, which can embrittle high-strength steels.

o   No External Hydrogen Embrittlement: Zinc thermal diffusion occurs where shallow hydrogen cell formation forms, in the first ten microns of the substrate surface. This area is also thermally diffused with polycrystalline developed by (Fe-Zn), which fills voids and vacancies in the substrate. Preventing hydrogen-cell formation and strengthening the substrate cell structure.

Thermal Energy’s Role:

o   Heating to 300–400°C provides sufficient energy for zinc atoms to diffuse into the steel lattice without melting either material.

o   The temperature range optimizes diffusion kinetics while preserving the substrate’s mechanical properties (e.g., avoiding softening or phase changes in steel).

Material Compatibility:

o   Zinc diffuses well into iron and low-alloy steels due to their compatible crystal structures (zinc: hexagonal close-packed, iron: body-centered cubic at process temperatures).

o   The formation of stable Fe-Zn intermetallic ensures a durable, corrosion-resistant coating.

Environmental and Practical Benefits:

o   The process is environmentally friendly compared to hot-dip galvanizing, as it avoids molten zinc baths and produces minimal waste.

o   It’s cost-effective, it services intricate parts (e.g., threads, fittings) used in under carriage automotive, in ground construction, marine applications and/or oil and gas downhole.

Key Features of the Coating

Key Features of the Coating

·       Corrosion Resistance: Outperforms coated steel in salt spray tests. At 50µms thermal diffused zinc (e.g., 1500–2500 hours per ASTM B117). At 50µms with make-up and break-out of threads, with (Al/Zn) spin dip, we see nearly 8,000+ salt spray hours. With corrosion only appearing on thermal growth alloy not the substrate.)
·       Adhesion: Metallurgical bonding ensures the coating withstands mechanical stress. (such as (MUBO) make up and break out).
·       Uniformity: Diffusion ensures even coating on complex shapes, such as thread dimensions, unlike electroplating or spraying.
·       Hardness: Intermetallic phases provide wear resistance, suitable for abrasive environments. Usually 1.7–2x harder than the substrate material.

TECHNICAL CHALLENGES AND

PROCESS CONTROL

By optimizing time and temperature parameters, we eliminate structural defects and ensure a uniform alloy gradient, providing superior resistance to operational stress and environmental challenges.

technical CHALLENGES

Challenges

·       Temperature Sensitivity: Excessive temperatures (>400°C/ 752ºF) may cause liquid-phase formation or substrate damage. (While in service.)
·       Substrate Limitation: Best suited for carbon or low-alloy steels; less common for stainless steel due to its inherent chromium-oxide passivation.
·       Process Control: Time, temperature, and zinc concentration must be precisely controlled to achieve desired coating thickness and phase composition.

Hardness: TDZ Coating vs. L80 Substrate

Hardness is a key mechanical property indicating resistance to indentation and wear. The thermal diffused zinc coating is generally significantly harder than the L80 substrate, offering better wear resistance on the surface while the softer substrate provides ductility. Below is a summary comparison based on standard hardness scales (Rockwell C [HRC] and Vickers [HV]). Values can vary slightly by process parameters, but typical ranges are provided.

Material/ComponentHardness (HRC)Hardness (HV)Notes
L80 Substrate≤ 23 HRC~240–250 HVMaximum allowable average hardness per API 5CT spec; ensures toughness in sour service environments. Single indentations must not exceed this limit.
Thermal Diffused Zinc Coating40–45 HRC350–450 HVAlloy layer (primarily delta and gamma phases) provides high surface hardness for abrasion resistance.

HARDNESS MECHANISMS

The elevated hardness stems from the solid-state diffusion process, which transforms the coating into a composite of hard, brittle intermetallic phases rather than a soft, pure zinc layer. Here’s the step-by-step explanation:

Why the Diffused Zinc Coating is Harder

1. Formation of Intermetallic Compounds:

During sherardizing (300–400°C), zinc atoms interdiffusion into the iron lattice of the L80 steel, reacting to form layered Zn-Fe intermetallic:

  • Outer zeta phase (FeZn₁₃): ~70–90 wt% Zn, very hard due to its tight crystal structure.
  • Delta phase (FeZn₇): Intermediate hardness.
  • Inner gamma phase (Fe₃Zn₁₀): ~60 wt% Zn, still harder than pure iron.

These phases have higher lattice strain and stronger atomic bonding than the substrate’s ferrite or pearlite grains, resisting deformation under indentation (e.g., Vickers testing). Pure zinc (as in non-diffused plating) is only ~50–100 HV and ductile but alloying with iron increases hardness by 4–8x.

2. Microstructural Refinement via Diffusion:

  • Fick’s Second Law governs the zinc concentration gradient, creating a diffusion zone (20–120 μm thick) where Zn content decreases with depth. This gradient promotes fine-grained intermetallic, which are inherently harder due to reduced grain size (Hall-Petch effect: hardness ∝ 1/√grain size).
  • The Kirkendall Effect (as discussed previously) causes vacancy clustering, leading to denser, more compact layers near the surface. This minimizes porosity and enhances load-bearing capacity, further boosting surface hardness.

3. Absence of Ductile Softening:

  • L80 steel’s matrix is designed for ductility (e.g., 59% reduction in area), allowing plastic deformation that lowers measured hardness.
  • In contrast, the Zn-Fe layers are brittle (low elongation <5%), with covalent-like bonding in intermetallic that resists slip, resulting in higher yield strength and hardness. However, this brittleness limits coating thickness to avoid cracking.

4. Process-Specific Enhancements:

  • Thermal diffusion at low temperatures avoids substrate softening (no austenite formation in L80), preserving base hardness while hardening the surface.
  • Compared to hot-dip galvanizing, sherardizing produces purer intermetallic without excess eta-phase zinc (soft outer layer), maximizing overall hardness.

Practical Implications

PropertyL80 (Normalized/Annealed)Thermal Diffused Zinc Coating (Sherardized)
СompositionFe-based alloy: 0.28–0.33% C, 0.8–1.1% Cr, 0.15–0.25% Mo, 0.4–0.6% Mn, balance FeZn-Fe intermetallic: ~70–90% Zn (zeta phase near surface), layered with delta (FeZn₇) and gamma (Fe₃Zn₁₀) phases
Hardness200–240 HV (or ~92 HRB)400+ HV (~41 HRC)
Tensile Strength560–700 MPaN/A (coating is thin layer; not measured directly; intermetallic contribute to surface wear resistance)
Yield Strength435–500 MPaN/A (brittle; focuses on surface hardness)
Elongation at Break20–25%<5% (brittle; low ductility)
Corrosion ResistanceModerate (forms rust in moist/salt environments; requires coatings for harsh conditions)Excellent sacrificial (galvanic) protection; 2500–3,000+ hours in salt spray tests (ASTM B117);
ThicknessBulk material (mm–cm scale)50–120 μm (diffusion zone)
MicrostructureFerrite-pearlite grains; ductileLayered intermetallic compounds; fine-grained.
Typical ApplicationsAerospace frames, automotive chassis, oil/gas tubing, structural componentsCorrosion protection on tension metals, buried, dissimilar contact and marine conditions.
AdvantagesHigh toughness, weldable, machinable, good strength-to-weight ratioSuperior adhesion (metallurgical bond), uniform on complex shapes, high wear resistance, no hydrogen embrittlement, dry-lubricity, gradient anodic, weldable, a barrier to all stresses.
DisadvantagesProne to corrosion without protection; lower surface hardnesslimited to surface treatment; process temperature-sensitive

Practical Implications

  • Benefits: The harder coating (~400 HV) provides superior wear resistance (e.g., against abrasion in fasteners or pipes) while the ductile L80 substrate absorbs impacts.
  • Trade-Offs: The brittle layer can crack under high stress, so it’s ideal for low-deformation applications. For L80 pipe, this coating extends service life in corrosive/abrasive environments without heat-treating the bulk material.

Notes:

  • L80 Condition: Data based on normalized state (common for coated substrates to maintain ductility). Heat-treated (quenched/tempered) L80 can reach 800–1,000 MPa tensile and 300–400 HV, but this would alter substrate behavior during diffusion.
  • Zinc-Iron Coating: Properties from thermal diffused zinc process; hardness increases due to intermetallic formation. Corrosion excels in atmospheric/marine settings.
  • Overall: The zinc-iron coating enhances L80’s surface durability while preserving bulk toughness—ideal for hybrid performance in demanding environments.

WEAR RESISTANCE

Wear Resistance Comparison: L80 vs. Thermal Diffused Zinc Coating vs. 13Cr/L80 Steel

  • Wear resistance (or “wearability”) refers to a material’s ability to withstand surface damage from abrasion, erosion, adhesion, or fatigue under mechanical stress. It’s influenced by hardness, microstructure, and surface conditions. Normalized L80 steel offers moderate wear resistance suitable for general structural use. The thermal diffused zinc coating provides superior surface wear resistance due to its harder intermetallic layers. 13Cr/L80 (a quenched-and-tempered martensitic stainless steel with 13% Cr, API L80 grade for oil & gas tubing) exhibits good wear resistance, better than L80 due to its martensitic structure and chromium carbides, but generally inferior to the zinc coating’s extreme surface hardness—though it excels in corrosive-wear environments.
  • Wear
  • Below is an expanded comparison table focusing on wear-related properties. Data for 13Cr/L80 is based on typical values (hardness ~23 HRC or 241 HV max; martensitic microstructure enhances abrasion/galling over carbon steels).
PropertyL80 (Normalized/Annealed)Thermal Diffused Zinc Coating (Sherardized)
СompositionFe-based alloy: 0.28–0.33% C, 0.8–1.1% Cr, 0.15–0.25% Mo, 0.4–0.6% Mn, balance FeZn-Fe intermetallic: ~70–90% Zn (zeta phase near surface), layered with delta (FeZn₇) and gamma (Fe₃Zn₁₀) phases
Hardness200–240 HV (or ~92 HRB)400+ HV (~41 HRC)
Tensile Strength560–700 MPaN/A (coating is thin layer; not measured directly; intermetallic contribute to surface wear resistance)
Yield Strength435–500 MPaN/A (brittle; focuses on surface hardness)
Elongation at Break20–25%<5% (brittle; low ductility)
Corrosion ResistanceModerate (forms rust in moist/salt environments; requires coatings for harsh conditions)Excellent sacrificial (galvanic) protection; 2500–3,000+ hours in salt spray tests (ASTM B117);
ThicknessBulk material (mm–cm scale)50–120 μm (diffusion zone)
MicrostructureFerrite-pearlite grains; ductileLayered intermetallic compounds; fine-grained.
Typical ApplicationsAerospace frames, automotive chassis, oil/gas tubing, structural componentsCorrosion protection on tension metals, buried, dissimilar contact and marine conditions.
AdvantagesHigh toughness, weldable, machinable, good strength-to-weight ratioSuperior adhesion (metallurgical bond), uniform on complex shapes, high wear resistance, no hydrogen embrittlement, dry-lubricity, gradient anodic, weldable, a barrier to all stresses.
DisadvantagesProne to corrosion without protection; lower surface hardnesslimited to surface treatment; process temperature-sensitive

STRESS MITIGATION

Problems in MR0175/ISO 15156/ CAPPs related to chemical stresses and mechanisms downhole

  • Chloride stress corrosion cracking (SCC),
  • Hydrogen-induced cracking and stepwise cracking (HIC),
  • Stress oriented hydrogen-induced cracking,
  • Soft zone cracking
  • Galvanically-induced hydrogen stress cracking

Wear Resistance Comparison: L80 vs. ThermaMitigation of Stress Cracking Effectsl Diffused Zinc Coating vs. 13Cr/L80 Steel

The Thermal Growth Alloy of the solid-state thermal diffusion does not have the same crystalline cell structure as the substrate, because it is an Intermetallic Layer made up of three different cell structure layers all protecting in different ways.


(ζ) Zeta layer has submicron and nano size polycrystalline structure packed tightly to inhibit and resist stress cracking. This layer is the first layer that meets the environment, so shallow hydrogen cells (10µms and less) have trouble forming as well. The lack and removal of internal hydrogen (IHE) in the process also helps reduce hydrogen cell formation and stress cracking in the substrate.

Thermal Growth Alloy is made up of three layers.
Crystalline Structure:

  • Γ phases: (GAMMA)Body-centered cubic (BCC)-derived ordered lattices, with high symmetry and brittleness.
  • δ phase: (DELTA)Hexagonal close-packed (HCP)-like structure, providing toughness and barrier to corrosion stresses.
  • ζ phase: (ZETA)Monoclinic lattice, less ordered and more prone to corrosion initiation but effective as a barrier. Overall, the structure is highly ordered and polycrystalline, with a fine grain size (often submicron), promoting uniformity and resistance to stress cracking. The diffusion mechanism ensures a metallurgical bond, making it harder (up to 400–500 HV) than electrodeposited coatings.

This layer excels in atmospheric corrosion protection for small, intricate steel parts (e.g., fasteners, chains, or fittings) due to its uniformity on complex geometries and lack of hydrogen embrittlement risk, though it’s less common for large structures compared to hot-dip methods.

CHLORIDE CRACKING

Overview

CSCC is a form of stress corrosion cracking that occurs in austenitic stainless steels, duplex stainless steels, and other alloys (e.g., nickel-based alloys) when exposed to chloride-containing environments under tensile stress and elevated temperatures (typically >50°C). It is driven by the interaction of chlorides, stress, and a susceptible microstructure, leading to trans granular or intergranular cracking.

Chloride Stress Corrosion Cracking (CSCC)

Mechanism

  • Initiation: Chlorides (e.g., from seawater, brine, or process fluids) penetrate surface defects or passive oxide layers, causing localized pitting or crevice corrosion. This creates stress concentration points.
  • Propagation: Under tensile stress (applied or residual), cracks propagate through the material, often in a branched, trans granular pattern (though intergranular in sensitized materials). Oxygen and temperature accelerate the process.
  • Conditions: Requires chlorides, tensile stress (>50% yield strength), and temperatures above 50–60°C. Common in marine, petrochemical, and desalination environments.

Affected Materials and Applications

  • Austenitic stainless steels (e.g., 304, 316), duplex stainless steels, and high-nickel alloys.
  • Applications: Heat exchangers, pipelines, pressure vessels, and offshore structures exposed to chloride-rich environments (e.g., seawater, brine).

How TDZ Helps

  • Limited Direct Protection for Stainless Steels: TDZ is primarily applied to carbon and low-alloy steels, not stainless steels, which are the primary materials susceptible to CSCC.
  • Indirect Benefits in Mixed Systems: In systems where carbon steel components (coated with TDZ) are coupled with stainless steel, TDZ’s sacrificial anodic gradient behavior protects the carbon steel from corrosion, reducing galvanic effects that could indirectly exacerbate chloride exposure at stainless steel surface contact. By minimizing corrosion of adjacent carbon steel, TDZ reduces the release of corrosion products that could locally increase chloride concentration or acidity.
  • Corrosion Barrier in Specific Cases: For carbon steels in chloride-containing environments, TDZ’s zinc-iron alloy layer reduces general corrosion, limiting hydrogen generation that could contribute to other cracking mechanisms (e.g., HIC). However, CSCC is less relevant for carbon steels, as they are more prone to pitting or uniform corrosion in chloride environments. This is where TDZ helps the most.
  • Limitations: TDZ does not address the microstructural susceptibility of stainless steels to CSCC, like it does with carbon and low alloy steels such as (UNS004130, UNS004145, L80). Where pitting is negated by the multiple layers of overlapping circuit potentials  in the TDZ’s entire thermal growth alloy.

This offsets:

  • Having to use alloys with high pitting resistance equivalent numbers (PREN > 40, e.g., super duplex or Alloy 625).
  • Design: Minimize residual stresses via post-weld heat treatment (PWHT); avoid crevices.
  • Environment Control: Reduce chloride concentration, lower operating temperatures, or apply cathodic protection.

SOHIC MITIGATION

Overview

SOHIC is a specific form of hydrogen-induced damage that combines elements of HIC and stress corrosion cracking. It occurs in carbon and low-alloy steels in sour environments under tensile stress, where hydrogen-induced microcracks align perpendicular to the stress direction, often in the HAZ or near welds. SZC (discussed previously) is a subtype of SOHIC, localized to softened HAZ regions.

Stress-Oriented Hydrogen-Induced Cracking (SOHIC)

Mechanism

  • Hydrogen Charging: Similar to HIC, atomic hydrogen from sour corrosion diffuses into the steel, accumulating at defects or inclusions.
  • Stress Influence: Tensile stress (applied or residual, often >75% yield strength) orients hydrogen-induced microcracks perpendicular to the stress axis. These cracks link in a stacked, ladder-like array, forming through-thickness fractures.

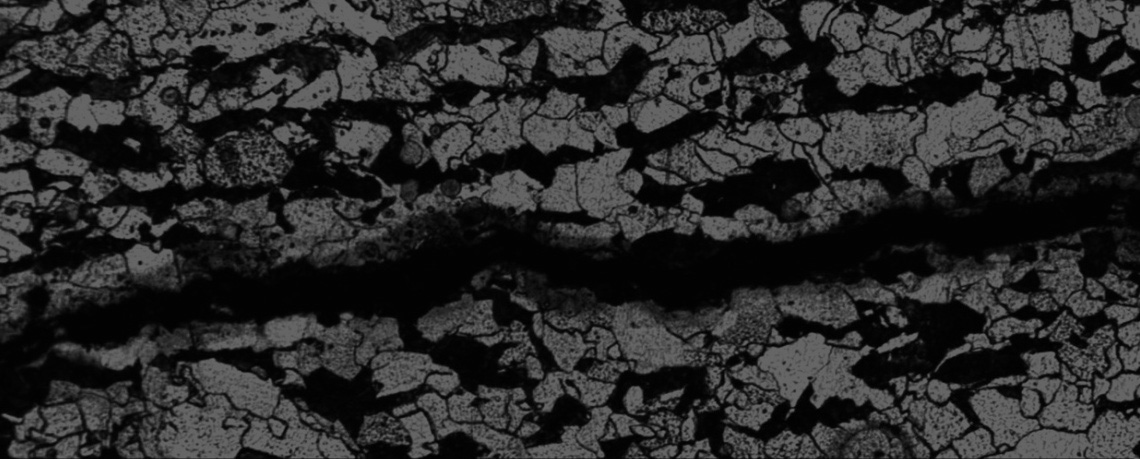

  • Crack Morphology: Unlike HIC’s random or planar cracks, SOHIC cracks are stress-aligned, often initiating at HIC-like blisters and propagating via ductile shear or cleavage. SZC is a localized form of SOHIC in soft HAZ zones.
  • Conditions: Requires wet H₂S, high tensile stress, and susceptible microstructures (e.g., banded or inclusion-rich steels). Common in welds due to residual stresses.

Affected Materials and Applications

  • Carbon and low-alloy steels, particularly in welded components.
  • Applications: Pipelines, pressure vessels, and refinery equipment in sour service (per NACE MR0175/ISO 15156).

How TDZ Helps

  • Corrosion Barrier: TDZ’s zinc-iron coating reduces corrosion in H₂S environments, limiting hydrogen production at the steel surface. This directly lowers the hydrogen available to diffuse into the steel and cause SOHIC.
  • Sacrificial Protection: The zinc layer corrodes preferentially, protecting the steel substrate and reducing hydrogen ingress, especially in welds or HAZs prone to SOHIC.
  • Hydrogen Diffusion Reduction: The zinc-iron intermetallic layer acts as a partial barrier to hydrogen diffusion, slowing its entry into stress-concentrated areas like welds.
  • Weld Protection: TDZ can be applied post-welding (such as welded pipe) to cover the HAZ and base metal, reducing corrosion in these regions. Its uniform adhesion ensures protection even on complex weld geometries.
  • Limitations: TDZ does not eliminate residual stresses or microstructural vulnerabilities (e.g., inclusions, banding) that drive SOHIC. It must be combined with stress relief (e.g., PWHT) and HIC-resistant steel selection. In severe sour conditions, the coating’s lifespan may be reduced, due to prior variables in the make-up of the substrate metal.

PERFORMANCE SUMMARY

Cracking MechanismTDZ EffectivenessKey Mechanism AddressedLimitations
CSCCHighly Limits Cracking (not applicable to stainless)Reduces galvanic corrosion in mixed systems, lowering chloride exposure indirectlyFe-based alloy: 0.28–0.33% C, 0.8–1.1% Cr, 0.15–0.25% Mo, 0.4–0.6% Mn, balance Fe
HIC/SWCHighReduces corrosion and hydrogen ingress in sour environmentsDoes not alter steel microstructure (e.g., inclusions, banding)
SOHICHighLimits corrosion and hydrogen diffusion in welds/HAZDoes not reduce residual stresses or microstructural susceptibility

Summary of TDZ Effectiveness

General TDZ Benefits Across Mechanisms

  • Corrosion Resistance: The zinc-iron alloy layer (15–100 µm thick, 150–300 HV) protects against corrosion in sour or aqueous environments, reducing hydrogen generation.
  • Sacrificial Protection: Zinc-Iron’s low active gradient anodic behavior protects steel, minimizing hydrogen uptake.
  • Hydrogen Barrier: The diffusion-bonded coating slows hydrogen diffusion in shallow formations compared to bare steel or CRAs.
  • Durability: TDZ withstands temperatures up >400°C and resists wear, suitable for harsh oil/gas or marine environments.
  • No Hydrogen Introduction: Unlike electroplating, TDZ avoids introducing hydrogen during application.

Practical Considerations

  • Application: Sherardizing ensures uniform coating on complex geometries, ideal for welds and fittings.
  • Coating Thickness: Thicker coatings (50–80 µm) are recommended for sour or chloride environments.
  • Testing: Verify coating performance with NACE TM0284 (HIC), TM0177 (SOHIC/SSC), or ASTM B117 (salt spray).
  • Complementary Strategies: Pair TDZ with HIC-resistant steels, stress relief (PWHT), and proper welding to maximize protection.

Notes for CSCC

Since CSCC primarily affects stainless steels, TDZ is less relevant unless carbon steel components are part of a galvanic couple in a chloride environment. For CSCC, focus on low alloy selection (e.g., MR0175 selected materials) and for flow coatings (e.g., epoxy).

Soft Zone Cracking (SZC)

SZC occurs in the heat-affected zone (HAZ) of welds in sour (H₂S-containing) environments, where hydrogen from corrosion diffuses into softened microstructural zones, leading to cracking under stress.

Soft Zone Cracking (SZC)

How TDZ Helps:

Corrosion Barrier:

  • The zinc-iron alloy layer formed during TDZ is highly corrosion-resistant, reducing the steel’s exposure to corrosive environments like wet H₂S. This limits the electrochemical reactions that generate atomic hydrogen (H⁺ reduction at the steel surface), a key driver of SZC.
  • Unlike pure zinc coatings (e.g., galvanizing), TDZ forms a metallurgically bonded, uniform, and non-porous coating, minimizing localized corrosion sites that could enhance hydrogen production.

Reduced Hydrogen Ingress:

  • By preventing corrosion, TDZ significantly reduces the amount of atomic hydrogen generated at the steel surface. Less hydrogen is available to diffuse into the soft zones of the HAZ, lowering the risk of hydrogen accumulation at grain boundaries or defects where SZC initiates.
  • The diffusion process creates a hard (up to 250–300 HV) zinc-iron intermetallic layer, which may act as a partial barrier to hydrogen diffusion compared to bare steel.

Sacrificial Protection:

  • If the coating is damaged, zinc-iron acts as a sacrificial gradient anode, corroding preferentially to protect the underlying steel. This galvanic protection further reduces corrosion of the steel substrate, limiting hydrogen production even in aggressive sour environments.

Compatibility with Welds:

  • TDZ can be applied post-welding, covering the HAZ and reducing corrosion in these vulnerable soft zones. The high-temperature diffusion process ensures good adhesion even on complex weld geometries, unlike some organic coatings that may fail at weld imperfections

Limitations for SZC:

o   Heating to 300–400°C provides sufficient energy for zinc atoms to diffuse into the steel lattice without melting either material.

o   The temperature range optimizes diffusion kinetics while preserving the substrate’s mechanical properties (e.g., avoiding softening or phase changes in steel).

GalvanicallyInduced Hydrogen Stress Cracking (GHSC)

GHSC occurs when a metal (e.g., steel) is galvanically coupled to a more cathodic material in a corrosive environment, leading to enhanced hydrogen production and embrittlement under stress.

How TDZ Helps:

Galvanic Protection:

  • TDZ coats the steel with a zinc-rich layer that acts as a gradient anode relative to the steel substrate. In a galvanic couple (e.g., steel welded to a corrosion-resistant alloy like stainless steel), the zinc preferentially corrodes, protecting the steel from anodic dissolution and reducing hydrogen generation at the steel surface.
  • This sacrificial behavior shifts the corrosion potential of the steel to a less noble state, minimizing the galvanic current that drives hydrogen production in GHSC.

Uniform Coating:

  • The TDZ process produces a consistent, diffusion-bonded coating without the porosity or unevenness of hot-dip galvanizing. This reduces sites for localized galvanic cells to form, which could otherwise accelerate hydrogen uptake at the steel surface.

Hydrogen Barrier:

  • The zinc-iron intermetallic layer has lower hydrogen permeability than bare steel, potentially slowing hydrogen diffusion into the substrate. This is critical in GHSC, where hydrogen embrittlement is driven by galvanically induced hydrogen production at the cathode (steel surface).
  • The high-temperature diffusion process also minimizes trapped hydrogen, oxygen, chlorides and sulfides in the coating itself, unlike some electroplated coatings that can introduce hydrogen during application.

Stress Corrosion Resistance:

  • By reducing corrosion and hydrogen ingress, TDZ lowers the likelihood of crack initiation at the surface, where GHSC typically begins. This is particularly effective for high-strength steels or welds under tensile stress in aqueous environments.

Gradient Open Ciurcuit Potential:

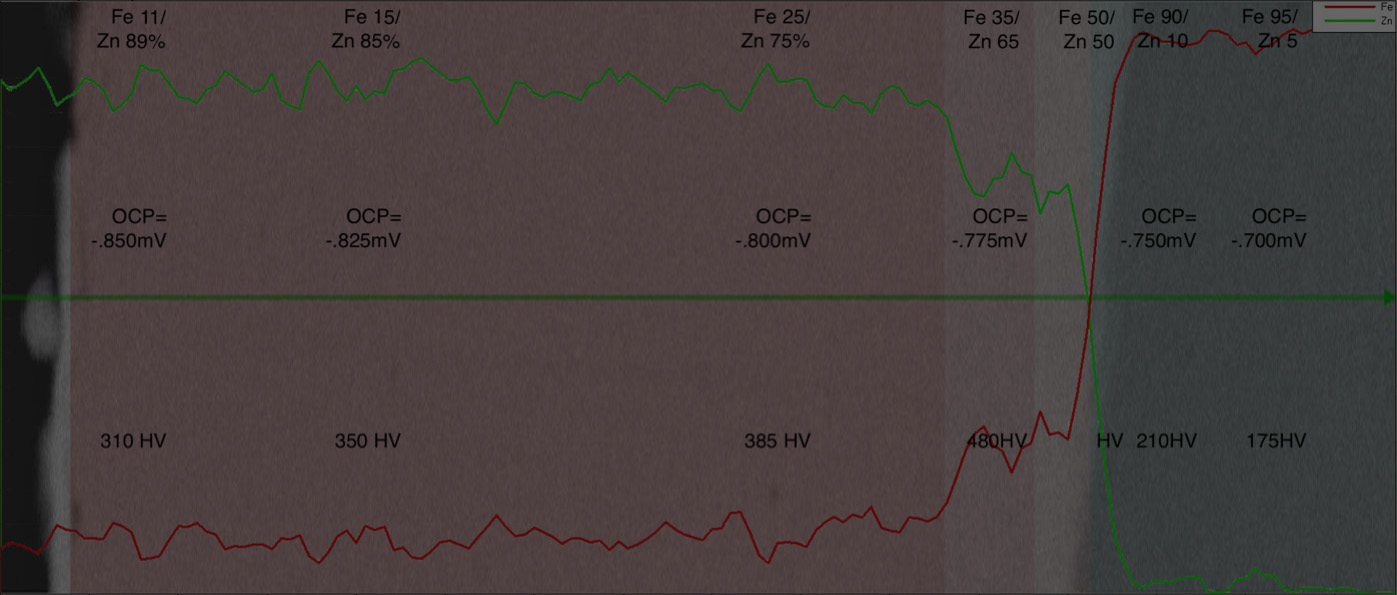

  • The Thermal Growth Alloy has a gradient slope when it comes to the open circuit potential of the zinc-iron alloy. Meaning it changes as the % of iron (Fe) changes. Never having a direct circuit potential indifference. In the Zeta layer it has an (OCP = -.850mV), in the Delta layer it has an (OCP= -.825 to -.800mV) and in the Gamma layer it has an OCP = -.790mV or almost equal with the substrate.) This is why TDZ has designations for burial, contact and dissimilar metal applications. Whereas Hot-Dip galvanizing, Electroless nickel and stainless-steel materials corrode almost immediately.

Limitations for GHSC:

  • Coating Durability: In highly acidic or sour environments, the zinc-iron layer may degrade, requiring maintenance or additional protective measures like added thickness or more complex polycrystalline methods to meet each individual environment need.
  • Stress Considerations: TDZ does not reduce residual stresses from welding or applied loads, which are critical for GHSC. Stress relief (e.g., PWHT) or design adjustments are still necessary. (Pre-existing Stresses)

Practical Considerations

  • Application: Sherardizing involves tumbling steel parts in zinc powder at high temperatures, ensuring uniform coating even on complex geometries. This is ideal for protecting welds, fittings, or small components prone to SZC or GHSC.
  • Thickness: Typical TDZ coating thicknesses (15–100 µm) provide long-term protection, but thicker coatings (e.g., 50–80 µm) are preferred for sour or galvanically aggressive environments.
  • Testing: Coating integrity can be verified using salt spray tests (ASTM B117), hydrogen effusion tests, or NACE TM0177 for sour service performance.
  • Complementary Measures: TDZ should be combined with material selection (e.g., low-sulfur steels), proper welding techniques, and stress relief to fully mitigate SZC and GHSC.

Summary

  • Application: Sherardizing involves tumbling steel parts in zinc powder at high temperatures, ensuring uniform coating even on complex geometries. This is ideal for protecting welds, fittings, or small components prone to SZC or GHSC.
  • Thickness: Typical TDZ coating thicknesses (15–100 µm) provide long-term protection, but thicker coatings (e.g., 50–80 µm) are preferred for sour or galvanically aggressive environments.
  • Testing: Coating integrity can be verified using salt spray tests (ASTM B117), hydrogen effusion tests, or NACE TM0177 for sour service performance.
  • Complementary Measures: TDZ should be combined with material selection (e.g., low-sulfur steels), proper welding techniques, and stress relief to fully mitigate SZC and GHSC.

Combating Microbial
Complications

Scientific tests confirm that ziPLY technology reduces active microbial biomass (ATP) by 68–99%. The zinc-infused surface acts as a continuous biocide, preventing bacteria from reaching the steel lattice and colonizing the metal.”

Overview of Thermal Diffused Zinc Pipe and the Biofilm Test

ziPLY Pipe, is a type of thermal diffused zinc-infused steel pipe with an interior plastic coating. It’s designed for use in oil and gas applications where corrosion resistance is critical. A 2017 progress report evaluates its potential for microbiologically influenced corrosion (MIC), focusing on whether MIC-associated organisms (e.g., sulfate-reducing bacteria or SRB, and general heterotrophs tracked via aerobic plate count or APB) can form biofilms on the surface or corrode the metal.

  • Synergy: Fick’s Second Law provides the temporal blueprint for zinc penetration (predicting profile and depth), while the Kirkendall Effect adds spatial nuance (asymmetric layering and vacancy-driven refinement). Together, they transform a simple heat treatment into an engineered Zn-Fe alloy coating: the law ensures depth control, and the effect creates the multiphase durability.
  • Practical Outcome: In sherardizing, a 50 μm coating forms in 4 hours at 350°C, with zinc concentration evolving per the error function and interface shifting ~2–5 μm due to Kirkendall velocity. This yields a sacrificial barrier lasting 500–1000 hours in salt spray tests.
  • Challenges and Control: High T amplifies both (faster D, larger V), risking defects—solved by process optimization.

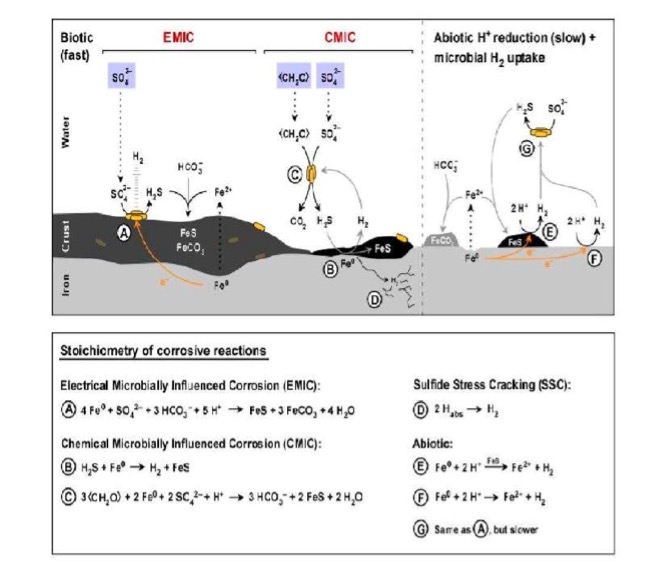

(Figure 2) We see a diagram of how biofilm works to cause sulfide stress cracking (SSC).

 The way in which TDZ negates this is by disallowing the biofilm to reach the substrate crystalline. The TDZ acts as both a barrier to the lattice of the substrate and also as a known biocide. The biofilm (CRUST) needs to attach itself and grow within the surface of the metal in order to colonize. This never takes place due to the % of Zinc in the TDZ , but also in the substrate as well. The biofilm would need to first eat through the entire TDZ layer, then >10µms deep into the substrate prior to establishing a colony that would produce (SSC).

TreatmentLocationTDS (%)
Negative ControlSterilized DI water0.5
Test Water #1San Joaquin Basin1
Test Water #2Delaware Basin15
Test Water #3NW Shelf15

Key Findings on Biofilm Performance

The way in which TDZ negates this is by disallowing the biofilm to reach the substrate crystalline. The TDZ acts as both a barrier to the lattice of the substrate and also as a known biocide. The biofilm (CRUST) needs to attach itself and grow within the surface of the metal in order to colonize. This never takes place due to the % of Zinc in the TDZ , but also in the substrate as well. The biofilm would need to first eat through the entire TDZ layer, then >10µms deep into the substrate prior to establishing a colony that would produce (SSC).

Test FluidTDZ ATP (Initial → 10 Weeks)Coated CS ATP (Initial → 10 Weeks)Uncoated CS ATP (Initial → 10 Weeks)
Negative Control0 → 1.5 pg/mL0 → 0.6 pg/mL0 → 1.4 pg/mL
Water #1 (Low TDS)44,449 → 14,054 pg/mL44,449 → 24,709 pg/mL44,449 → 35,742 pg/mL
Water #2 (High TDS)26,211 → 1,010 pg/mL26,211 → 34,500 pg/mL26,211 → 15,933 pg/mL
Water #3 (High TDS)349 → 3 pg/mL349 → 10,231 pg/mL349 → 12,127 pg/mL

  • Interpretation: TDZ reduced ATP by 68–99% in active waters, vs. 0–44% increases or smaller drops on CS variants. This implies the zinc infusion disrupts microbial adhesion or survival, limiting biofilm buildup. Exceptions were minor in the sterile control (all low).

Bacterial Counts (APB/SRB)

  • Initial counts were high in field waters (10^7–10^10 cfu/mL for APB/SRB), but the report notes overall decreases in most bottles.
  • Specific 10-week APB/SRB data for TDZ isn’t fully detailed (pending in some cases), but the ATP trends correlate with reduced populations. No spikes or persistent growth on TDZ samples.
  • “Bug bottle” (positive microbial control) results were pending, but no anomalies reported for TDZ.

Visual and Physical Observations

  • Photos (day 1 vs. 10 weeks) show:
    • Water #1 (San Joaquin): Waters remained relatively clear; metal surfaces showed minimal discoloration on TDZ compared to rustier CS.
    • Water #2 (Delaware): More turbid initially, but Delta 5 samples had cleaner appearances (less slime or sediment adhesion) than CS, which developed brownish/orange hues indicative of corrosion/biofilm.
    • Water #3 (NW Shelf): Similar clarity retention on zinc; CS showed heavier deposits.
  • No pitting or weight loss data reported yet, but the undisturbed setup preserved surface attachment for later biofilm analysis.
  • Overall: TDZ surfaces appeared less fouled, supporting reduced biofilm adhesion.
  • Implications and Limitations
  • How Well It Works: Thermal diffused zinc (ziPLY) excels at inhibiting biofilm in these simulated conditions—far better than standard coated/uncoated CS. The zinc likely acts as a biocide, leaching ions that stress microbes and prevent colonization. This could extend pipe life in sour (H2S-rich) or brackish environments prone to MIC.
  • Context: This is a preliminary 10-week stagnant test; real-world flow, temperature fluctuations, or longer exposure might differ. Full biofilm microscopy and corrosion rates (mpy) were planned but not included here.
  • Broader Context: Thermal diffused zinc coatings are known for cathodic protection and antimicrobial properties in pipelines. This report aligns with industry use in oilfield tubing to combat SRB-driven pitting.
